Kit for concentric (encoder-encoder) View larger

Kit for concentric (encoder-encoder)

New

Printed circuit board to build a set that moves two encoders with concentric shafts.

High quality fiber-glass double faced PCB with solder mask that makes very easy installing the needed components.

Format: kit to be assembled by customer.

More details

130 items available

8,00 €

  • No
  • Yes

More info

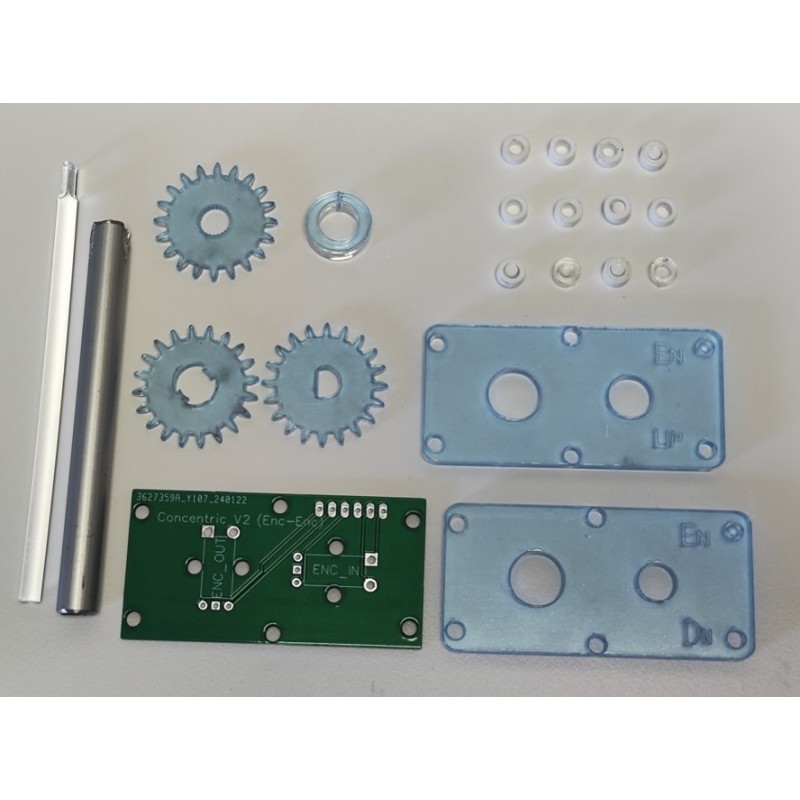

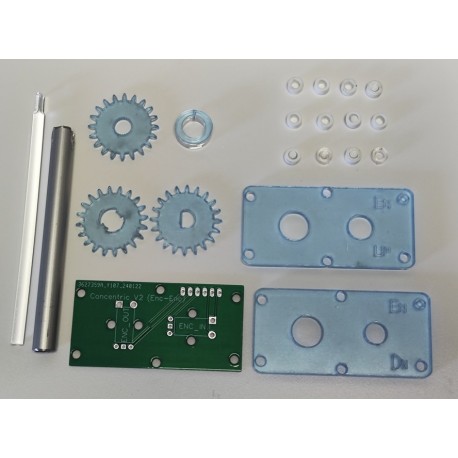

Kit includes:

  • 1 aluminium shaft (diameter 8 mm; lenght 60 mm)
  • 1 acrylic shaft (diameter 4 mm; length 90 mm)
  • 2 gears
  • 2 acrylic panels
  • 12 plastic washers
  • 1 accesory piece for 8 mm shaft

Needed components (optional):

  • 6 M3x10 bolts
  • 3 M3x15 bolts
  • 3 30 mm female-female spacers
  • 3 20 mm female-female spacers
  • 12 pins
  • 2 EC11 encoders
