B747 Audio

BP03

New

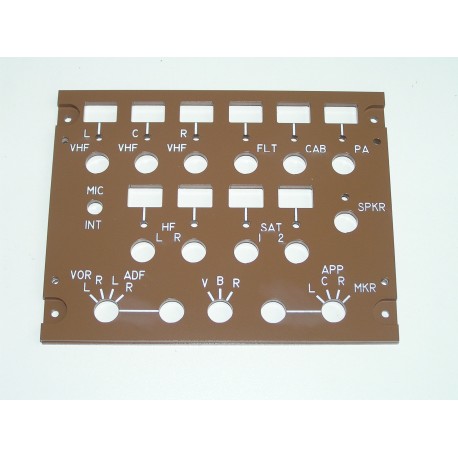

Audio control panel for Boeing 747 simulated cockpit pedestal.

Laser cut and laser engraved.

Format: kit to be assembled by customer.

Easy to backlit.

Panel color: brown RAL8024. Engraved keys color: black RAL9005.

Size: 145x114 mm.

More details

95 items available

30,00 €

More info

Consisting on the following elements:

  • 1 front panel with engraved texts
  • 1 middle panel with holes for components nuts
  • 1 back panel with holes for components fitting
  • 1 auxiliary piece to fit tactile switches
  • 23 engraved buttons (23 front pieces 5 mm thickness + 23 back pieces 3 mm thickness)

Needed components (optional):

  • 23 OMROM B3F 4050 tactile switch or equivalent
  • 11 Green leds
  • 12 high bright Green leds
  • 23 470 ohms resistors
  • 3 12-positions rotary switches
  • 1 ON-OFF toggle switch

Knobs not included.
