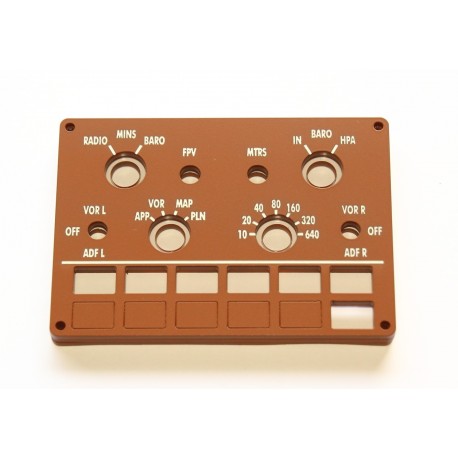

B777 EFIS

Consisting on the following elements:

• 1 front panel with engraved texts
• 1 middle panel with holes for components nuts
• 1 back panel with holes for components fitting
• panels to build the concentric kit
• pieces to build the tactile switch holders
• 7 engraved buttons (7 front pieces 5 mm thickness + 7 back pieces 3 mm thickness)
• 4 legends (RST, CTR, TFC y STD) to be inserted into the control knobs

Needed components:

• 9 OMROM B3F 1055 tactile microswitches or equivalent
• 2 black buttons
• 2 ON-OFF-ON switches
• 4 rotary switches (12 positions, 1 circuit)
• 2 EC11 encoders
• 8 female-female 30 mm standoffs
• 7 male-female 30 mm standoffs
• 12 plastic washers for M3
• 4 M3x10 bolts
• 3 M3x15 bolts
• 4 M3x12 stamped head bolts
• 4 M3 nuts
• 4 gear for concentric kit
• 2 aluminum shafts lenght 95 mm with limit ring
• 2 acrylic shafts length 125 mm
• 2 5x5x70 mm bars
• 7 3x3x105 mm bars

Knobs not included.
