B737 Brakes pressure

New

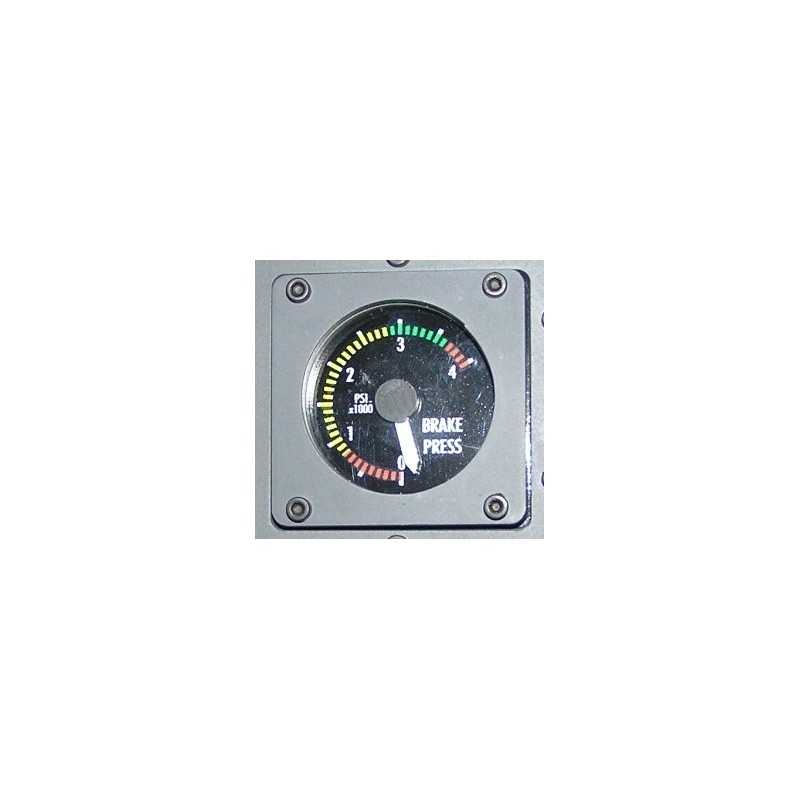

Brake pressure gauge for Boeing 737 simulated cockpit.

Laser cut and laser engraved.

Format: kit to be assembled by customer.

Easy to backlit.

Panel color: dark gray RAL7043, black RAL9005.

Size: 56x56 mm.

More details

175 items available

25,00 €

  • No
  • Yes

More info

Consisting on the following elements:

  • 1 front frame made of 3 mm. thickness white acrylic
  • 1 middle panel made of 2 mm. thickness transparent acrylic simulating glass
  • 1 spacing panel made of 5 mm. thickness transparent acrylic
  • 1 panel with engraved scale
  • 1 panel for backlight fitting
  • 1 needle
  • 1 fitting piece for servo motor
  • 1 shaft (10 cm)
  • 2 acrylic gears
  • 2 pieces to fix the 4 mm shaft
  • 1 sticker for sectors colors

Needed components (optional):

  • 1 servo motor
  • 2 leds strips
  • 4 30 mm spacers (male-female)
  • 4 30 mm spacers (female-female)
  • 4 M3x10 bolts
  • 4 M3x15 bolts
