C172 PCB for Bendix type radios

New

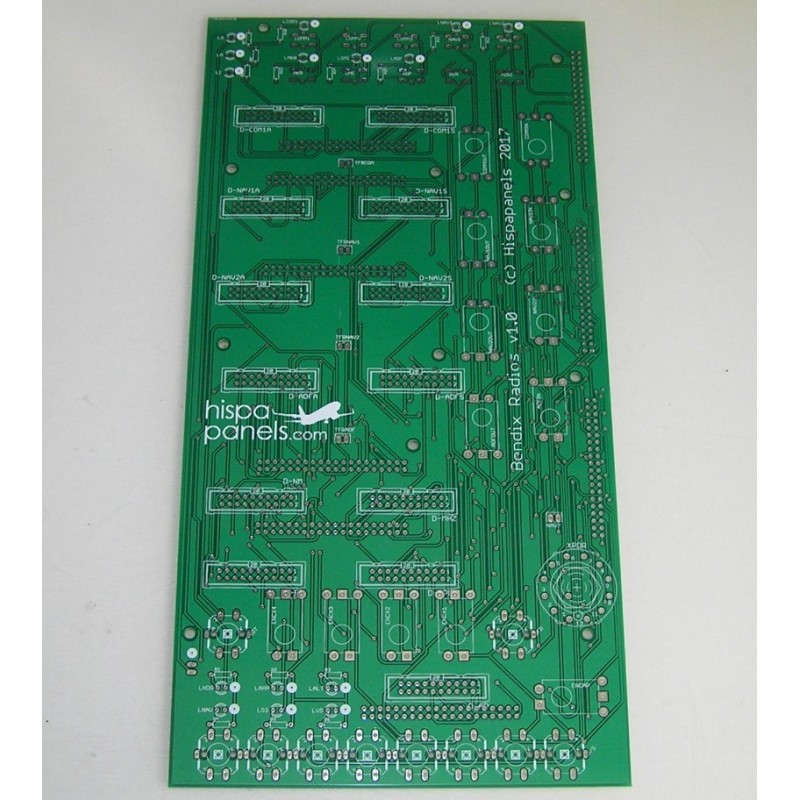

Printed circuit board for Bendix type autopilot and radios. High quality fiber-glass double faced PCB with solder mask that makes very easy installing the needed components.

Format: kit to be assembled by customer.

To be directly connected to SimIO boards.

More details

15 items available

27,00 €

  • No
  • Yes

More info

Control for the following inputs and outputs:

  • OMI leds
  • Audio panel (with COMM1, COMM2, COMM3, NAV1, NAV2, MKR, DME, ADF, AUX and MONI buttons)
  • COMM1 radio with dual shafts
  • NAV1 and NAV2 radios with dual shafts
  • ADF radio with dual shafts
  • DME display (NAV1 / NAV2)
  • Transponder radio (with VFR and IDT buttons)
  • Autopilot section (with AP, HDG, NAV, FD, ALT, APP, BC and V/S buttons)

Needed components (optional):

  • 10 spacers, 30 mm male-female
  • 9 spacers, 30 mm female-female
  • 13 3 mm plastic washers
  • 9 M3x10 bolts
  • 4 M3x15 bolts
  • 10 tactile switches, 12x12 mm
  • 10 tactile switches, 6x6 mm
  • 13 encoders (4 of them with slotted shaft)
  • 1 12-positions rotary switch with chamfered shaft
  • 1 pin strip
  • 16 polarized connectors, 2 pins, male
  • 21 polarized connectors, 2 pins, female
  • 26 connectors for ribbon cable, 20 pins (male + female)
  • 9 connectors for ribbon cable, 40 pins (male + female)
  • 13 sets of 6 7-segments displays and 13 printed circuit boards
  • 13 470 ohms resistors
  • 2 4K3 ohms resistors
  • 1 ON-OFF toggle switch
  • 4 black push buttons
  • 6 amber leds, 3 mm
  • 6 green leds, 3 mm
  • 1 white led, 5 mm
  • 1 amber led, 5 mm
  • 1 blue led, 5 mm
  • 4 shafts, diameter 8 mm, lenght 75 mm + accesories
  • 6 shafts, diameter 6 mm
  • 4 shafts, diameter 4 mm, lenght 100 mm
  • 6 linking pieces for 6 mm shafts
  • 20 plastic bars, 3x3x85 mm

Assembly instructionos here.
