B737 PCB engines fire extinguishers (v1.1) and levers

New

Printed circuit board for Boeing 737 engines fire extinguishers panel. Including the circuits for the leds inside extinguishers levers.

High quality fiber-glass double faced PCB with solder mask that makes very easy installing the needed components.

Format: kit to be assembled by customer.

To be directly connected to SimIO boards.

More details

187 items available

8,00 €

  • No
  • Yes

More info

Consisting on the following elements:

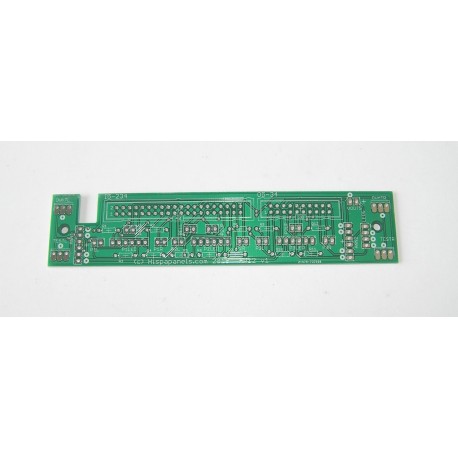

  • 1 printed circuit board

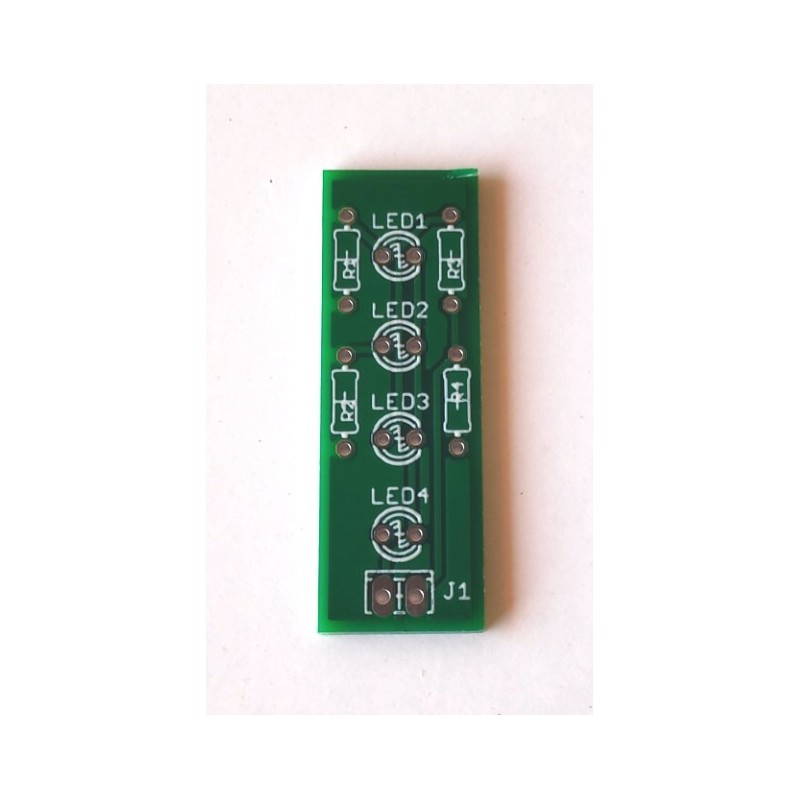

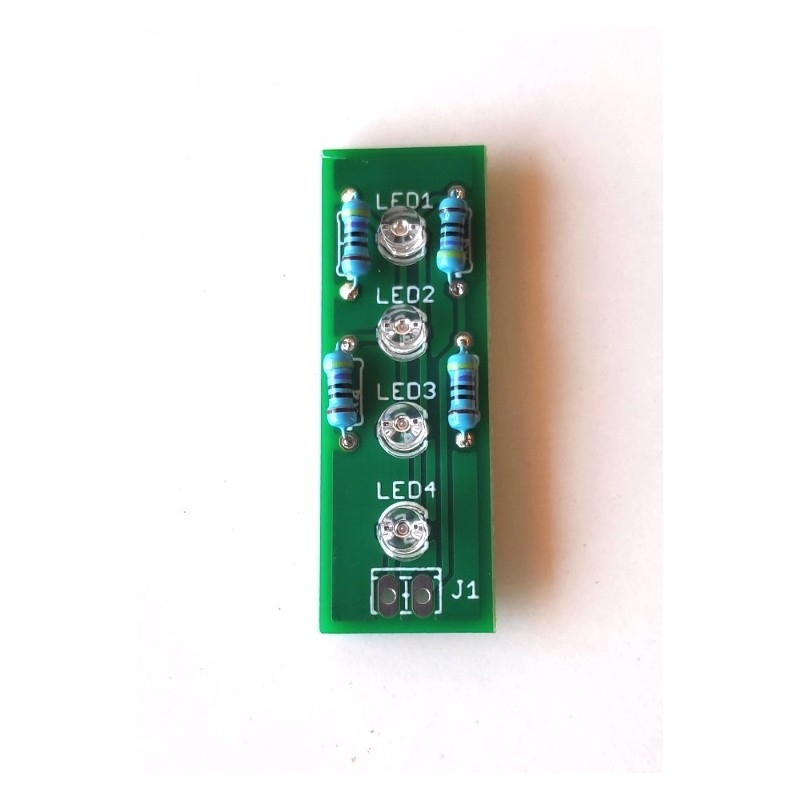

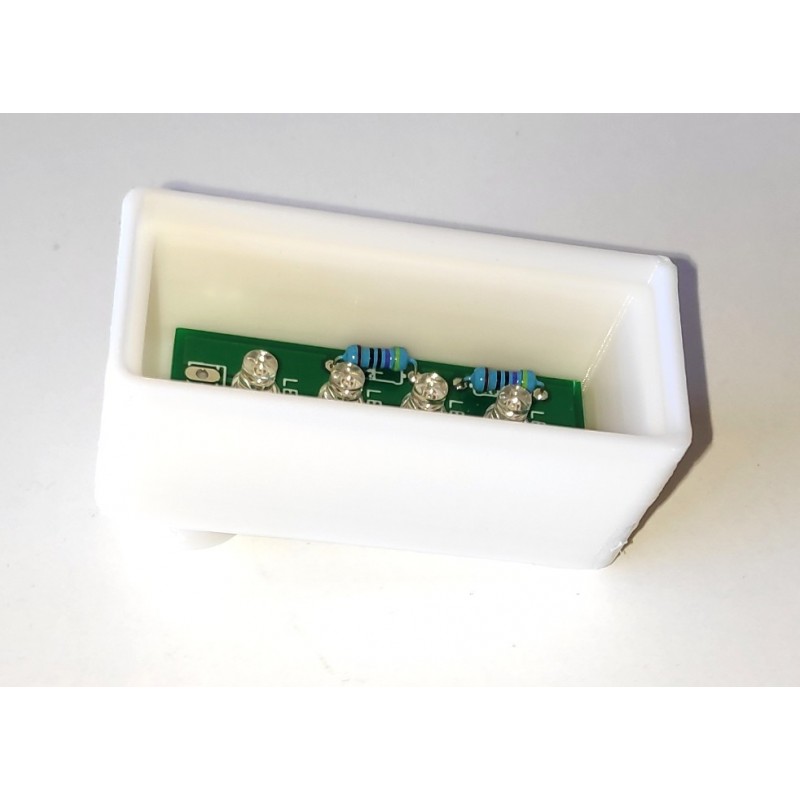

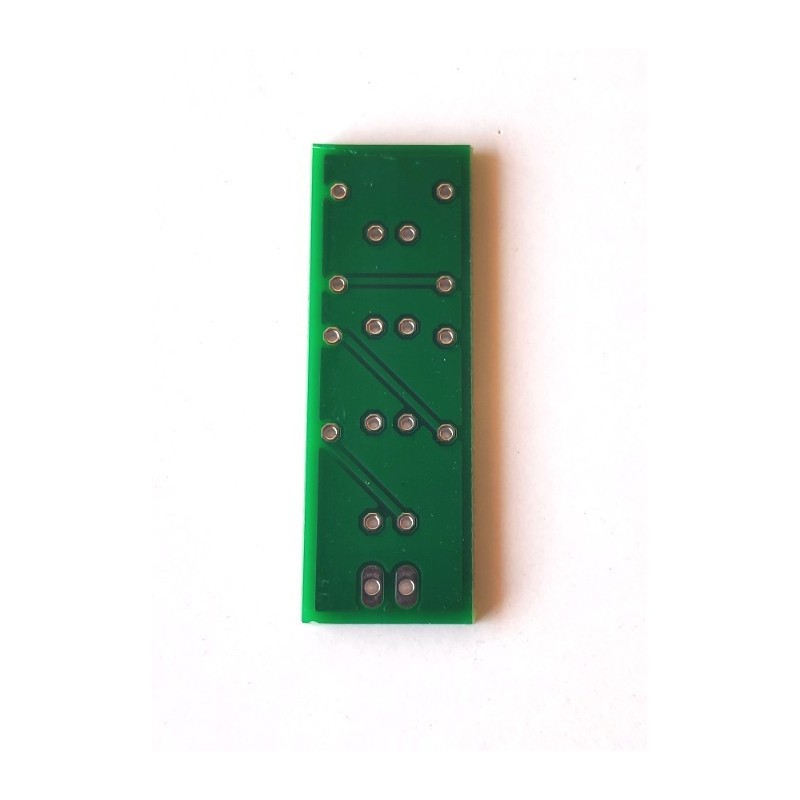

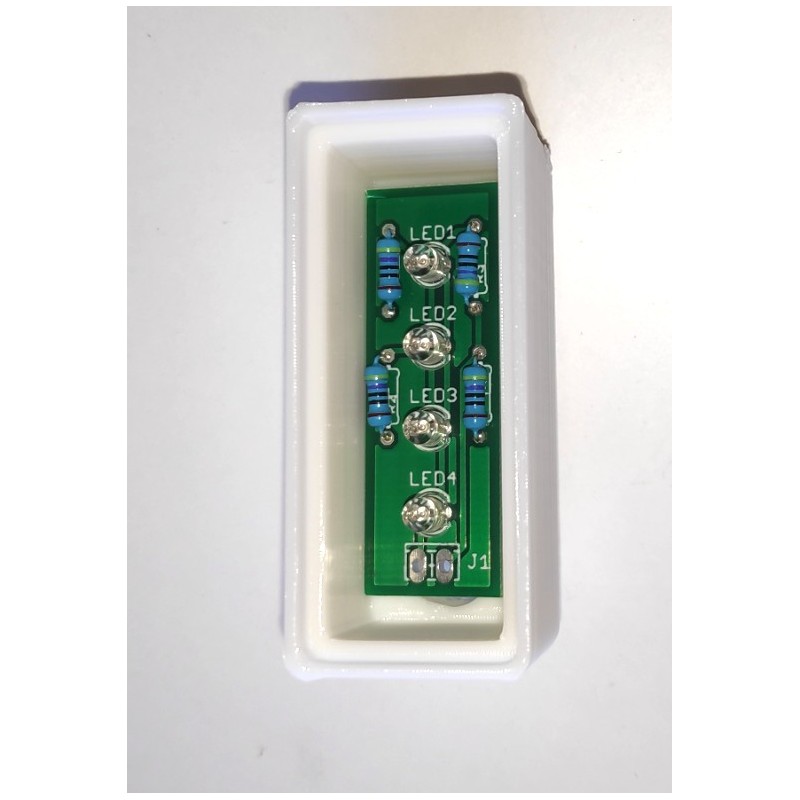

  • 3 printed circuit boards for leds inside levers

Control for the following inputs:

  • Extinguishers levers (up, down , left and right)
  • OVHT DET (x2) and TEST (x2) toggle switches
  • BELL CUTOUT button

and outputs:

  • Leds for each extinguisher lever
  • Leds for annunciators
  • Leds for L, R and APU

Needed components (optional):

  • 3 big ON-OFF toggle switches
  • 2 ON-OFF-ON toggle switches
  • 2 (ON)-OFF-(ON) toggle switches
  • 3  5 mm green leds
  • 14 high bright red leds
  • 17 470 ohms resistors
  • 14 high bright amber leds
  • 14 180 ohms resistors
  • 1 black push button
  • 6 M3x12 stamped head bolts
  • 12 M3x40 bolts
  • 9 M3x10 bolts
  • 6 M3x16 bolts
  • 15 M3x20 bolts
  • 12 M3 nuts
  • 12 spacers, 20 mm male-female
  • 6 spacersde, 30 mm male-female
  • 9 spacersde, 30 mm female-female
  • 6 limit switches
  • 6 cable ties
  • 3 pin strips
  • 1 polarized connector polarizados de 2 pin (male)
  • 11 polarized connectors 2 pin (female)
  • 4 polarized connectors 3 pin (female)
  • 1 polarized connector 4 pin (male+female)
  • 2 polarized connectors 6 pin (male)
  • 5 polarized connectors 6 pin (female)
  • 1 IDC connector 10 pin (male+female)
  • 1 IDC connector 40 pin (male+female)

Assembly instructions here.
