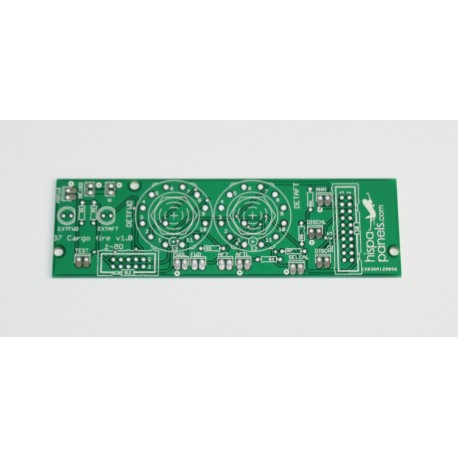

B737 PCB cargo fire (v 1.1)

New

Printed circuit board for B737 cargo fire panel. High quality fiber-glass double faced PCB with solder mask that makes very easy installing the needed components.

Format: kit to be assembled by customer.

To be directly connected to SimIO boards.

More details

196 items available

10,00 €

  • No
  • Yes

More info

Consisting on the following elements:

  • 1 printed circuit board

Control for the following inputs:

  • DET FWD and DET AFT selectors
  • TEST button
  • ARMED FWD, ARMED AFT and DISCH switches

and outputs:

  • EXT leds
  • Annunciator
  • Leds for ARMED FWD, ARMED AFT and DISCH switches
  • Leds for SELCAL panel

Needed components (optional); this kit includes every needed component to build the cargo fire panel, so you don't need to add any component when ordering the cargo fire panel:

  • 3 RAFI19 tactile switches
  • 2 3 mm red leds
  • 3 3 mm yellow leds
  • 3 3 mm white leds
  • 2 5 mm green leds
  • 13 470-ohms resistors
  • 1 black push button
  • 2 12-positions rotary switches
  • 2 20-pin connectors for ribbon cable (male + female)
  • 10 2 pin female polarized connectors
  • 6 2 pin male polarized connectors
  • 3 3 pin female polarized connectors
  • 1 6 pin polarized connector (male+female)
  • 36 pins for previous connectors
  • 1 pin strip
  • 3 metallic spacers, 30 mm male-female
  • 3 metallic spacers, 30 mm female-female
  • 3 M3x12 button head bolts
  • 3 M3x10 bolts
  • 3 acrylic washers 3 mm
  • 4 led strip (12 leds)
  • 2 6 mm acrylic shafts (5 cm lenght) with linking piece for rotary switches

Assembly instructions here.
