B737 PCB for Chrono (digital version) (v 1)

New

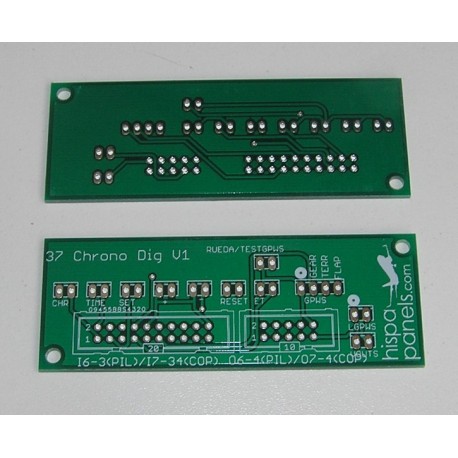

Printed circuit board for B737 chrono/watch panel (digital version). High quality fiber-glass double faced PCB with solder mask that makes very easy installing the needed components.

Format: kit to be assembled by customer.

Same PCB is designed to be used for pilot and copilot sides.

To be directly connected to SimIO boards.

More details

200 items available

10,00 €

  • No
  • Yes

More info

Control for the following inputs:

  • buttons: CHR, TIME/DATE, SET, +, -, RESET, ET
  • button and switches on GPWS panel (copilot side).
  • nose wheel switch (pilot side).

outputs:

  • GPWS annunciator (copilot side)

Needed components (optional):

  • 1 20 pines IDC connectors (male + female)
  • 1 10 pines IDC connector (male + female)
  • 2 polarized connectors, 2 pins (male)
  • 10 polarized connectors, 2 pins (female)
  • 1 polarized connector, 4 pins (male + female)
  • 24 pins for polarized connectors
  • 1 pin strip

Assembly instructions here.
