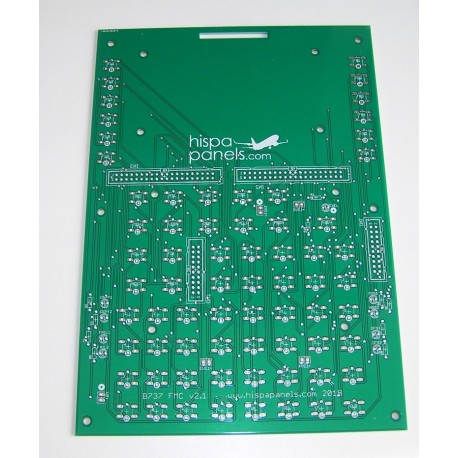

B737 PCB for FMC (v 2.1)

New

Printed circuit board for Boeing 737, 747 or 777 FMC panel. High quality fiber-glass double faced PCB with solder mask that makes very easy installing the needed components.

Format: kit to be assembled by customer.

To be directly connected to SimIO boards.

More details

196 items available

25,00 €

  • No
  • Yes

More info

Control for the following inputs:

  • every tactile switch on the FMC

and outputs:

  • power led
  • two leds per annunciator

You can use standard 6x6 mm tactile switches or the ones with led included (the circuit is ready for those type of switches). In the second case each button would be backlit by the switch. If you choose the optional components, the switches with leds will be included.

Needed components (optional). This kit includes everything (except the FMC panel) to build the panel, so you don't need to add any component when ordering the FMC panel:

  • 2 40-pins IDC connector for PCB (male + female)
  • 2 20-pins IDC connectors for PCB (male + female)
  • 3 2-pin polarized connectors (male + female)
  • 6 high bright white leds
  • 2 high bright amber led
  • 1 green rectangular led 5x2 mm
  • 9 470 ohms resistor
  • 1 2000 ohms resistor
  • 14 M3x10 bolts
  • 2 M3x15 bolts
  • 6 M3x20 bolts
  • 14 plastic washers 3 mm
  • 4 10 mm spacers female-female
  • 26 M3 nuts
  • 12 grover washers M3

It's needed one SImIO USB MAIN card and one 64INPUTS card.

Assembly instructions here.
