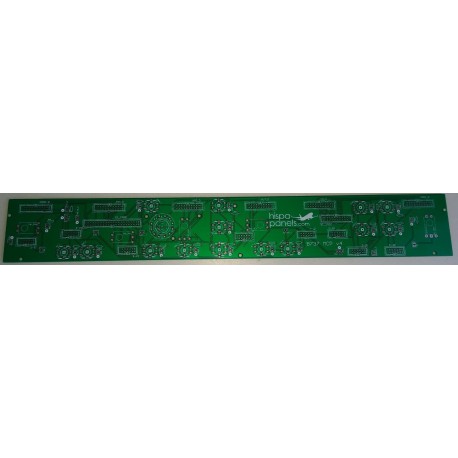

B737 PCB for MCP (v 4.1) (Honeywell)

New

Printed circuit board for B737 MCP panel, Honeywell version. High quality fiber-glass double faced PCB with solder mask that makes very easy installing the needed components.

Format: kit to be assembled by customer.

To be directly connected to SimIO boards.

It includes the circuit to install a concentric knob BANK ANGLE/HDG in an easy way.

More details

190 items available

30,00 €

  • No
  • Yes

More info

Control for the following inputs:

  • encoders: pilot CRS, copilot CRS, IAS, HDG, ALT, V/S
  • rotary switch: BANK ANGLE (integrating the concentric circuit for HDG-BANK ANGLE)
  • tactile switches: LVL, APP, HDG, VNAV, VOR, LNAV, ALT, V/S, ALT INT, CMD A, CMD B, CWS A, CWS B, N1, SPEED, C/O y SPD
  • switches: pilot and copilot FD, DISENGAGE, A/T

and outputs:

  • leds: pilot and copilot MA1, A/T, N1, SPEED, VNAV, LVL CH, HDG, LNAV, VOR LOC, APP, ALT H, V/S, CMD A, CMD B, CWS A, CWS B,

Needed components for MCP Honeywell version (optional):

  • 6 groups of 7-digits 7-segment displays with PCB
  • 5 CTS288 encoders (chamfered shafts without slot)
  • 1 CTS288 encoder (shaft with slot)
  • 1 12-positions rotary switch with chamfered shaft
  • 1 (ON)-OFF-ON toggle switch
  • 4 ON-OFF toggle switches
  • 3 black push buttons
  • 1 green led 5x2 mm
  • 16 high bright green leds
  • 14 12x12 mm tactile switches
  • 1 40-pins IDC connector for PCB (male + female)
  • 13 20-pins IDC connectors for PCB (male + female)
  • 8 10-pins IDC connectors for PCB (male + female)
  • 19 2-pin polarized connectors (male)
  • 25 2-pin polarized connectors (female)
  • 2 3-pin polarized connectors (female)
  • 60 pins for polarized connectors
  • 1 pin strip
  • 17 470-ohms resistors
  • 9 spacers 30 mm female-female
  • 20 spacers 30 mm male-female
  • 4 acrylic shafts (diameter 6 mm, lenght 75 mm)
  • 4 pieces to link encoders and 6 mm shafts
  • 1 alluminium shaft (diameter 8 mm, length 80 mm)
  • 1 acrylic shaft (diameter 4 mm, length 125 mm)
  • 1 stop piece for 8 mm shaft
  • 2 acrylic gears
  • 12 acrylic washers
  • 14 acrylic bars 3x3x80 mm
  • 2 acrylic panels to build the concentric set
  • 23 M3x10 bolts
  • 3 M3x16 bolts
  • 5 M3x12 button head bolts and nuts

Ribbon cables and leds strips not included.

In order to control displays properly, you have to use the sets of 6 7-segments displays and their PCBs (see "accesories" section below).

Assembly instructions here.

In order to build MCP panel like shown in the video below, you need to order:

  • MCP panel
  • MCP PCB with components
  • ribbon cable 4 meter
  • knobs for MCP
  • 27 leds strips (3 leds each; total 81 leds)
