A320 PCB for MCDU (v 1) View larger

A320 PCB for MCDU (v 1)

New

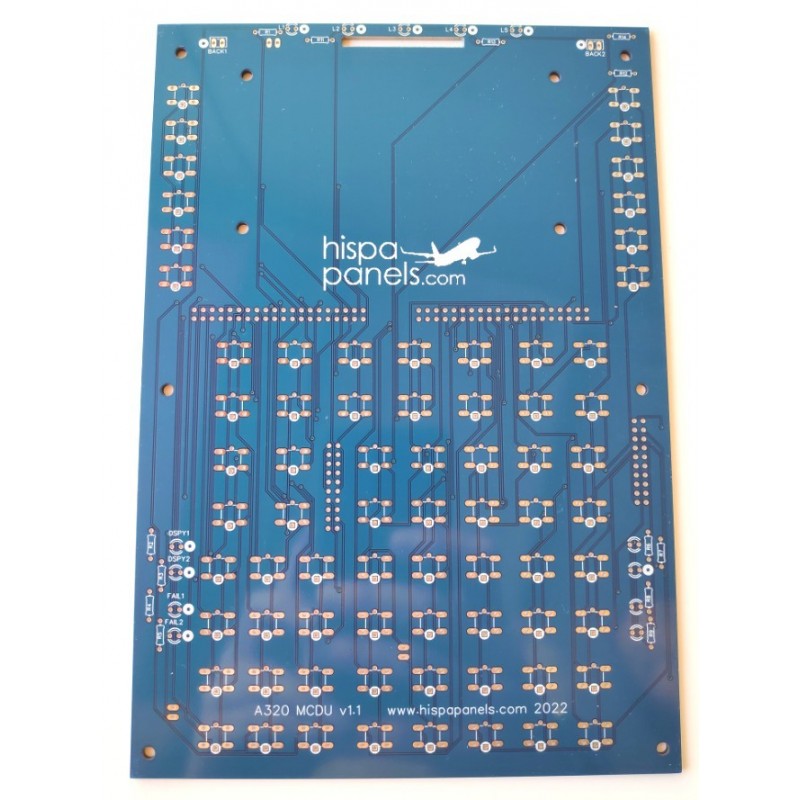

Printed circuit board for Airbus 320 MCDU panel. High quality fiber-glass double faced PCB with solder mask that makes very easy installing the needed components.

Format: kit to be assembled by customer.

To be directly connected to SimIO boards.

More details

197 items available

25,00 €

  • No
  • Yes

More info

Control for the following inputs:

  • every tactile switch on the MCDU

and outputs:

  • two leds per annunciator

You can use standard 6x6 mm tactile switches or the ones with led included (the circuit is ready for those type of switches). In the second case each button would be backlit by the switch. If you choose the optional components, the switches with leds will be included.

Needed components (optional). This kit includes everything (except the MCDU panel) to build the panel, so you don't need to add any component when ordering the MCDU panel:

  • 72 6x6 mm tactile switch with warm white led
  • 2 40-pins IDC connector for PCB (male + female)
  • 2 20-pins IDC connectors for PCB (male + female)
  • 3 2-pin polarized connectors (male + female)
  • 6 high bright white leds
  • 6 high bright amber led
  • 1 high bright green led
  • 6 180 ohms resistors
  • 7 470 ohms resistor
  • 14 M3x10 bolts
  • 2 M3x15 bolts
  • 6 M3x20 bolts
  • 15 plastic washers 3 mm
  • 4 10 mm spacers female-female
  • 26 M3 nuts
  • 12 grover washers M3
