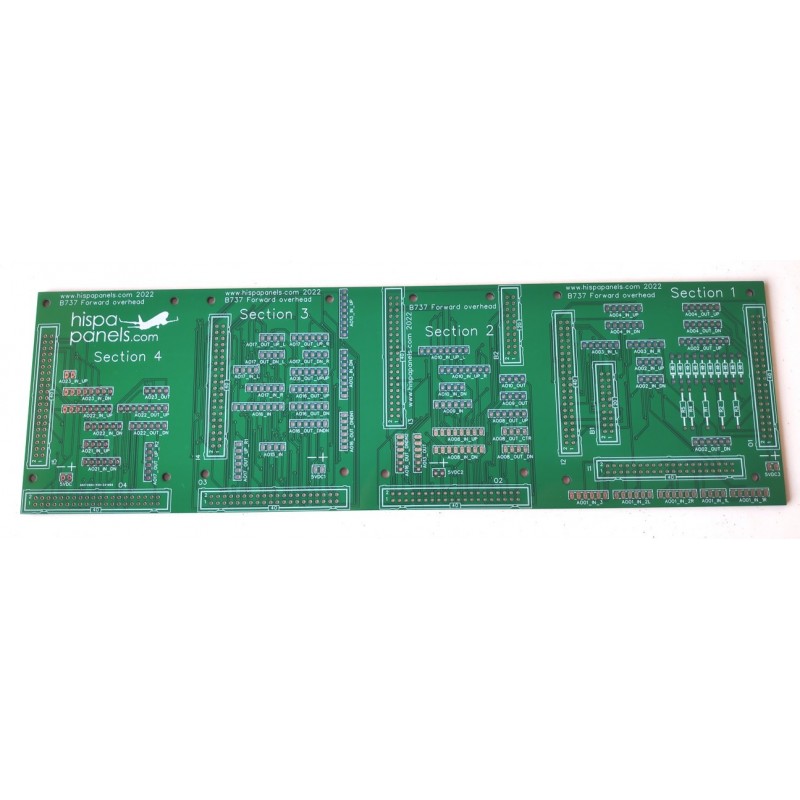

B737 PCB for forward overhead View larger

B737 PCB for forward overhead

New

Printed circuit boards for Boeing 737 forward overhead panel. High quality fiber-glass double faced PCB with solder mask that makes very easy installing the needed components.

Format: kit to be assembled by customer.

To be directly connected to SimIO boards.

Available: shiled cards for Arduino+Mobiflight.

More details

1 Item

Warning: Last items in stock!

10,00 €

  • No
  • Yes

More info

This PCB is divided in four secftions that has to be cut by the customer.

Needed components (optional):

  • 9 40-pin IDC connectors (male + female)
  • 2 20-pin IDC connectors (male + female)
  • 5 2-pin polarized connectores (male + female)
  • 15 4-pin polarized connectores (male + female)
  • 27 6-pin polarized connectores (male + female)
  • 11 8-pin polarized connectores (male + female)
  • 10 1N4148 diodes
  • 5 2K ohms resistors

More info in this document.
