Dimmer for backlighting View larger

Dimmer for backlighting

New

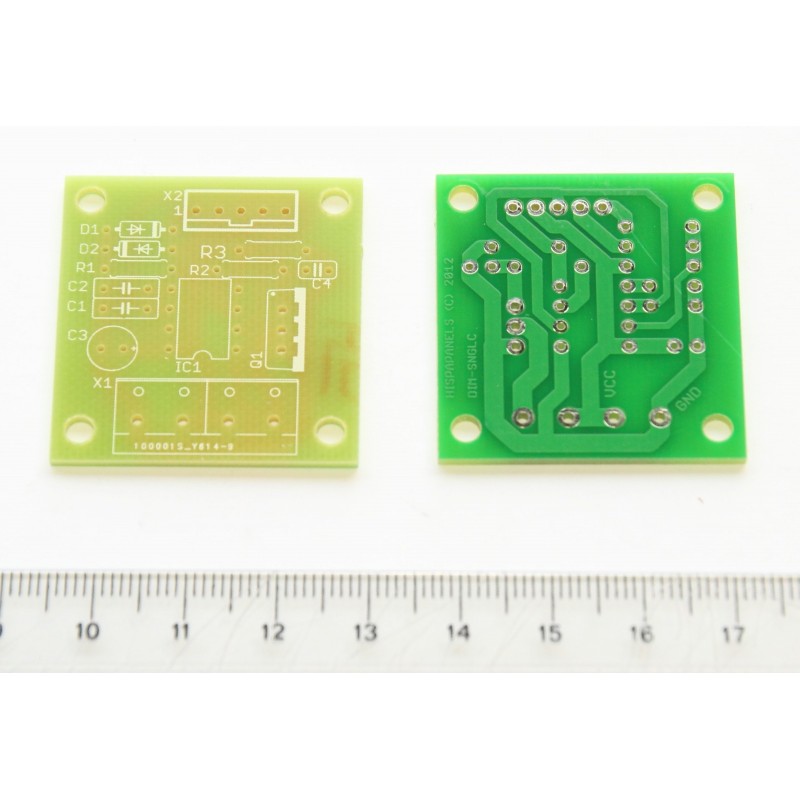

Printed circuit board for backlighting dimmer. High quality fiber-glass single faced PCB with solder mask that makes very easy installing the needed components. Very compact size.

Format: kit to be assembled by customer.

Circuit that controls the current by pulse width modulation (PWM). It can be connected to circuits with voltage from 5 to 12 volts DC, and with power up to 90 watts.

Size:

More details

175 items available

3,78 €

  • No
  • Yes

More info

Technical info:

  • Working temperature: 0 - 60 °C
  • Supply (Input-) voltage: 5-12 VDC
  • Dimmer type: PWM (pulse wide modulation)
  • Dimming range: 5%-95%; 0% -95% with switch
  • Output Voltage: same as supply voltage
  • Output Current: <30Amp
  • Max Outputpower: 90W
  • Dimensions: 34,5mm x 36mm

Needed components:

  • 1 1/4W resistor 1 kOhm
  • 1 1/4W resistor 50 Ohm
  • 1 1/4W resistor 2,7 kOhm
  • 2 Capacitor 100 nF
  • 1 Electrolyte Capacitor 100 uF
  • 1 Capacitor 10 nF
  • 2 Diode 1N4148
  • 1 Transistor BUZ11
  • 1 Integrated Circuit NE555
  • 1 connector with bolts
  • 1 pin strip

User manual here.
